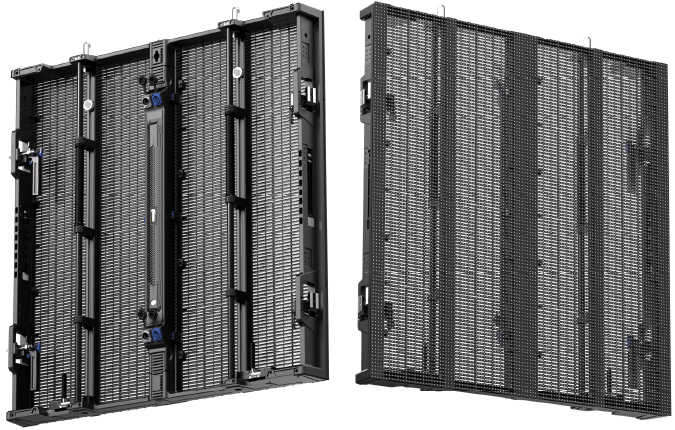

UT Plus Series
The Large-Scale Visual Solution
High Strength
Supporting 20 meters of high-strength hanging without external reinforcement. Designed specifically for large-scale suspension scenarios, ideal for high-demand environments.
Lightweight Design
Constructed with an ultra-light magnesium alloy frame weighing only 16.5kg per unit for faster setup and easier handling.
Adjustable Blanking plate
Integrated side knobs allow quick adjustment of the shading panels, adapting smoothly to ambient light for optimal clarity.
Curved Splicing
Enables ±15° smooth curve splicing and custom 45° right-angle units to fit varied design requirements.
Energy-saving
Voltage-regulated design cuts power consumption by 20% compared to conven-tional screens for lower operating costs.
Touring Support
Compatible with touring frames for rapid suspension, supporting heights up to 25 meters—perfect for large-scale events.
Specification
| Product | UT-Plus Series | |
| Application Scenarios | Outdoor | |
| Pixel Pitch (mm) | 3.9-7.8 | 8.9 |
| Cabinet Dimension (mm) | 1000x1000x96 | 1000x1000x100 |
| Cabinet Resolution (W×H) | 256×128 | 112×112 |
| Cabinet Weight (kg/pc) | 17 | 16.5 |
| Brightness (nit) | 4000 | |
| Refresh Rate (Hz) | ≥7680Hz | |
| Gray Scale (bit) | 16 | |
| Maintenance Method | Rear‑Service | |
| Power Consumption (W) | 510/170 | 420/140 |
| Curvature | ±15° | |
| IP Rating | IP65 | |
| Certifications | CE\ETL\FCC | |
| ※ Specifications are subject to change without prior notice. Please refer to the actual product. | ||

| FAQ about Dicolor LED Display | |||||
| Q: What are the main applications of LED displays provided by Dicolor? | A: Dicolor's LED displays are used in rental, outdoor advertising, commercial display, visualization, virtual filming, sports, and various other applications requiring high-quality visual technology. | ||||
| Q: What factors should be considered when choosing an LED display for an event? | A: For event displays, installation requirements should be detailed, including ease of operation, enhanced protection, and being lightweight and thin. | ||||
| Q: How does the brightness of an LED display affect its performance in different environments? | A: Higher brightness levels are crucial for outdoor displays to ensure visibility in direct sunlight. Indoor displays can use lower brightness levels, providing soft and non-glaring light. | ||||
| Q: What maintenance is required to keep an LED display in optimal condition? | A: Regular maintenance includes cleaning the display, checking for any damaged pixels, ensuring proper ventilation, and updating software and firmware as needed. | ||||
| Q: How energy-efficient are Dicolor's LED displays compared to other display technologies? | A: We focus on technological innovation and product quality. We were the first to introduce the third-generation energy-saving technology—DCD technology, which features precise RGB voltage control. This technology is energy-efficient and power-saving, truly creating practical and additional value for our customers. | ||||
| Q: What kind of support and services does Dicolor offer for their LED display products? | A: Dicolor provides comprehensive support and services, including installation assistance, technical support, maintenance services, and product training, ensuring optimal performance and longevity of their LED displays. | ||||
| Q: How to choose an LED display suitable for outdoor use? | A: When choosing an LED display for outdoor use, consider factors such as waterproof and dustproof ratings (e.g., IP65), brightness, weather resistance, and viewing angle to ensure stable operation in various weather conditions. | ||||
| Q: What should be noted during the transportation and installation of Dicolor's LED displays? | A: During transportation and installation, ensure that the screens are protected from shocks or vibrations, use specialized transport cases and installation tools, and have professionals handle the installation to ensure the equipment's safety and proper functioning. | ||||
| Q: How to troubleshoot common issues with LED displays? | A: Common issues like abnormal display or dead pixels can be addressed by checking power connections, data cables, and rebooting the system. If problems persist, contact Dicolor's technical support team for assistance. | ||||
| Q: What input signals and control systems do Dicolor's LED displays support? | A: Dicolor's LED displays support multiple input signals such as HDMI, DVI, DP, and SDI, and are compatible with various advanced control systems, offering flexible operation and broad compatibility to meet different application needs. | ||||
|
|||||
The product images and screen contents on this page are for illustrative purposes only. Actual product appearance (including but not limited to design, color, and dimensions) and screen display contents (including but not limited to backgrounds, UI, and illustrations) may slightly vary. Please refer to the actual product.
The UT Plus Series includes the following models: UT-390 PLUS,UT-890 PLUS. The barcode encoding rule on the back of the product module is as follows: PXL8 AF-390V3 DC250101XX-X 000X. Here, “PXL8” represents the factory identification and verification code, “AF-390V3” indicates the product model, “DC250101XX-X” is the order number, and “000X” represents the module’s sequential code. (Note: “X” indicates a specific number.)
To provide the most accurate product details, specifications, and features, Dicolor reserves the right to adjust and update textual descriptions, images, and other content on the webpage in real-time, ensuring consistency with the actual product’s performance, specifications, metrics, and components.
Due to real-time changes in product batches and production supply factors, modifications may occur without prior notice. We apologize for any inconvenience caused. For the latest updates, please refer to the official website.
