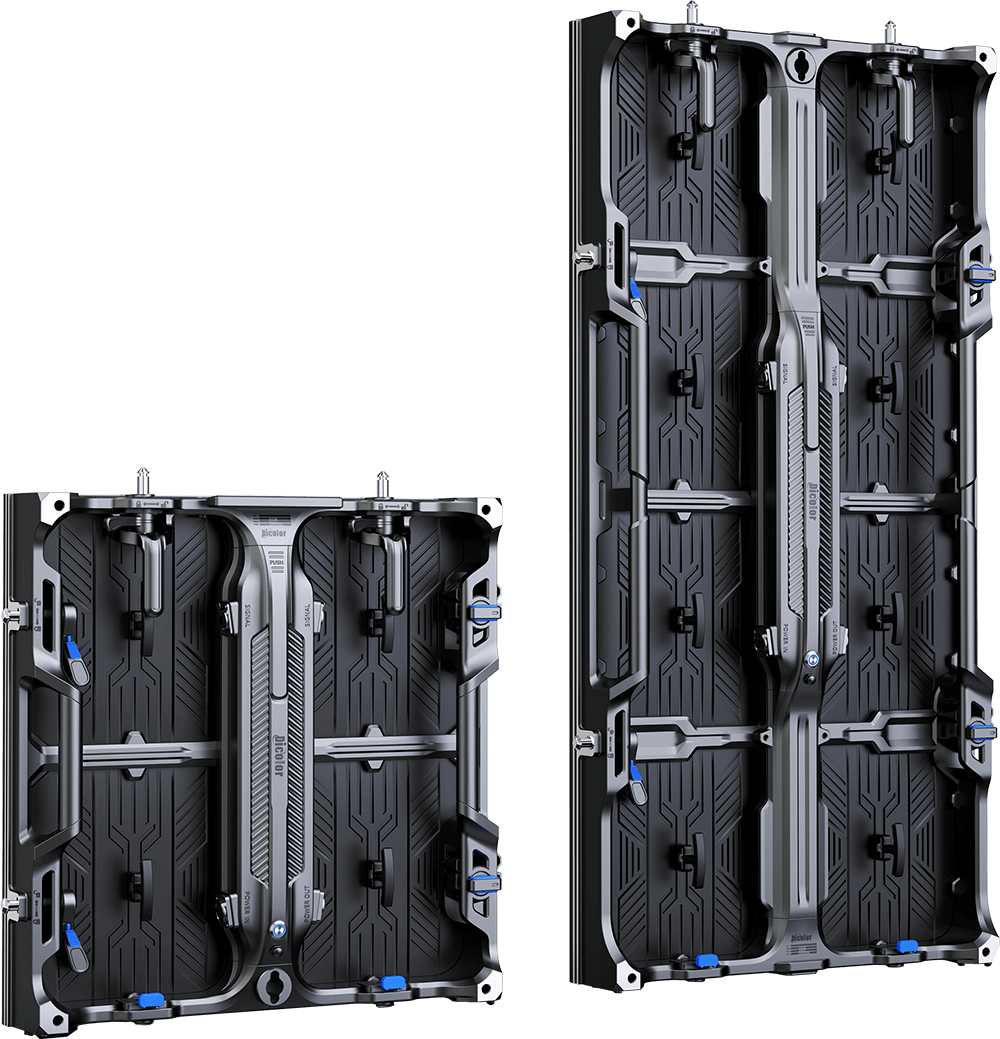

AFV3 Series
Inspire Creativity, Unlock New Rental Experience.
AFV3 inspires creativity and unlocks new rental experiences with innovative design and superior performance. Its flexible configurations and high-definition display make it suitable for various applications. Whether for concerts, exhibitions, or corporate events, AFV3 ensures an engaging and immersive visual experience.
Modular Design

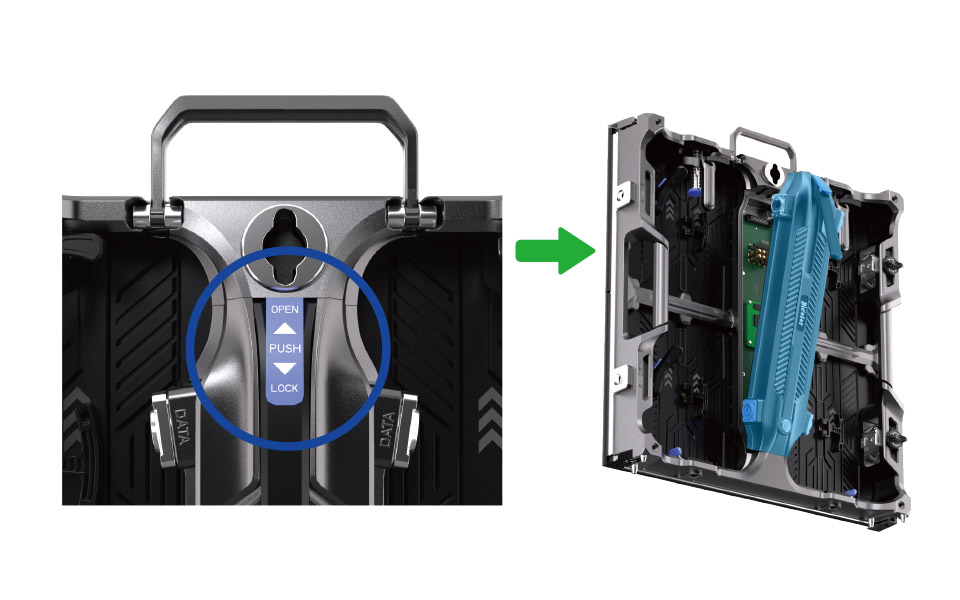

Supports both front and rear maintenance, the integrated PSU makes repairs and replacement of spare parts easy and cost-effective. Different pixel modules can be used on one cabinet frame, saving money on products, accessories, and training.
2 Steps & One-hand Operated
Innovative Curve Lock System
Automatic Edge Protection
The automatic retractable edge-protection corner helps to prevent damage of the LEDs and mask during set-up and transportation.
Corner Cabinet
125x500mm cabinet size.
Combination Capabilities With Popular Products
Wind-load Resistant for Touring Application
Safe hanging or stacking installation, resist wind speeds of up to 20 m/s when hanged 10m high User-friendly climbing steps.
VP & XR
True color 7680Hz HDR 16bit.
Specification
| Product | AF-191V3 | AF-261V3 | AF-291V3 | AF-391V3 | AF-260V3 | AF-290V3 | AF-390V3 | AF-480V3 |
| Pixel Pitch (mm) | 1.9 | 2.6 | 2.9 | 3.9 | 2.6 | 2.9 | 3.9 | 4.8 |
| Brightness (nits) | 800-1000 | 4500 | ||||||
| Cabinet Material | Die-casting aluminum | |||||||
| Cabinet Dimensions | 500x500x80 | 500x500x80 / 500x1000x80 | 500x500x80 | 500x500x80 / 500x1000x80 | ||||
| Cabinet Resolution | 256×256 | 192×192 | 168×168 168×336 | 128×128 128×256 | 192×192 | 168×168 168×336 | 128×128 128×256 | 104×104 104×208 |
| Cabinet Weight (Kg) | 8.5 | 8.5 | 8.5 /12.5 | 8.5 /12.5 | 8.8 / 13 | 8.8 / 13 | 8.8 / 13 | 8.8 / 13 |
| Gray Scale (bit) | 16 | 16 | 16 | 16 | 16 | 16 | 14 | 14 |
| Refresh Rate (Hz) | 7680 | |||||||
| View Angle(H/V) | 160° / 140° | 140° / 140° | ||||||
| Ingress Protection | IP40 | IP65 | ||||||
| Certificate | CE / ETL / FCC | |||||||
Coming Soon
| FAQ about Dicolor LED Display | |||||
| Q: What are the main applications of LED displays provided by Dicolor? | A: Dicolor's LED displays are used in rental, outdoor advertising, commercial display, visualization, virtual filming, sports, and various other applications requiring high-quality visual technology. | ||||
| Q: What factors should be considered when choosing an LED display for an event? | A: For event displays, installation requirements should be detailed, including ease of operation, enhanced protection, and being lightweight and thin. | ||||
| Q: How does the brightness of an LED display affect its performance in different environments? | A: Higher brightness levels are crucial for outdoor displays to ensure visibility in direct sunlight. Indoor displays can use lower brightness levels, providing soft and non-glaring light. | ||||
| Q: What maintenance is required to keep an LED display in optimal condition? | A: Regular maintenance includes cleaning the display, checking for any damaged pixels, ensuring proper ventilation, and updating software and firmware as needed. | ||||
| Q: How energy-efficient are Dicolor's LED displays compared to other display technologies? | A: We focus on technological innovation and product quality. We were the first to introduce the third-generation energy-saving technology—DCD technology, which features precise RGB voltage control. This technology is energy-efficient and power-saving, truly creating practical and additional value for our customers. | ||||
| Q: What kind of support and services does Dicolor offer for their LED display products? | A: Dicolor provides comprehensive support and services, including installation assistance, technical support, maintenance services, and product training, ensuring optimal performance and longevity of their LED displays. | ||||
| Q: How to choose an LED display suitable for outdoor use? | A: When choosing an LED display for outdoor use, consider factors such as waterproof and dustproof ratings (e.g., IP65), brightness, weather resistance, and viewing angle to ensure stable operation in various weather conditions. | ||||
| Q: What should be noted during the transportation and installation of Dicolor's LED displays? | A: During transportation and installation, ensure that the screens are protected from shocks or vibrations, use specialized transport cases and installation tools, and have professionals handle the installation to ensure the equipment's safety and proper functioning. | ||||
| Q: How to troubleshoot common issues with LED displays? | A: Common issues like abnormal display or dead pixels can be addressed by checking power connections, data cables, and rebooting the system. If problems persist, contact Dicolor's technical support team for assistance. | ||||
| Q: What input signals and control systems do Dicolor's LED displays support? | A: Dicolor's LED displays support multiple input signals such as HDMI, DVI, DP, and SDI, and are compatible with various advanced control systems, offering flexible operation and broad compatibility to meet different application needs. | ||||
|
|||||
The product images and screen contents on this page are for illustrative purposes only. Actual product appearance (including but not limited to design, color, and dimensions) and screen display contents (including but not limited to backgrounds, UI, and illustrations) may slightly vary. Please refer to the actual product.
The AF V3 series includes the following models: AF-191V3, AF-261V3, AF-291V3, AF-391V3, AF-260V3, AF-290V3, AF-390V3, AF-480V3. The barcode encoding rule on the back of the product module is as follows: PXL8 AF-390V3 DC250101XX-X 000X. Here, “PXL8” represents the factory identification and verification code, “AF-390V3” indicates the product model, “DC250101XX-X” is the order number, and “000X” represents the module’s sequential code. (Note: “X” indicates a specific number.)
To provide the most accurate product details, specifications, and features, Dicolor reserves the right to adjust and update textual descriptions, images, and other content on the webpage in real-time, ensuring consistency with the actual product’s performance, specifications, metrics, and components.
Due to real-time changes in product batches and production supply factors, modifications may occur without prior notice. We apologize for any inconvenience caused. For the latest updates, please refer to the official website.
Related Cases

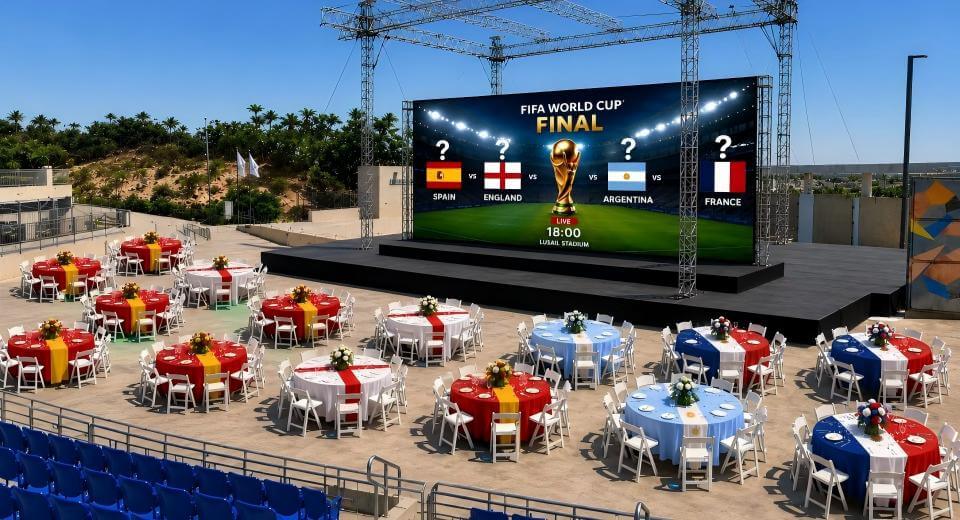

Amphi Park Mevaseret FIFA 2026
38.5㎡ Dicolor M-plus LED display transformed Amphi Park Mevaseret FIFA 2026 in Israel into a shared outdoor football experience. The free public screening brought local fans and families together, while the long-serving M-plus screen continued to deliver clear, stable, and reliable visuals throughout the event.

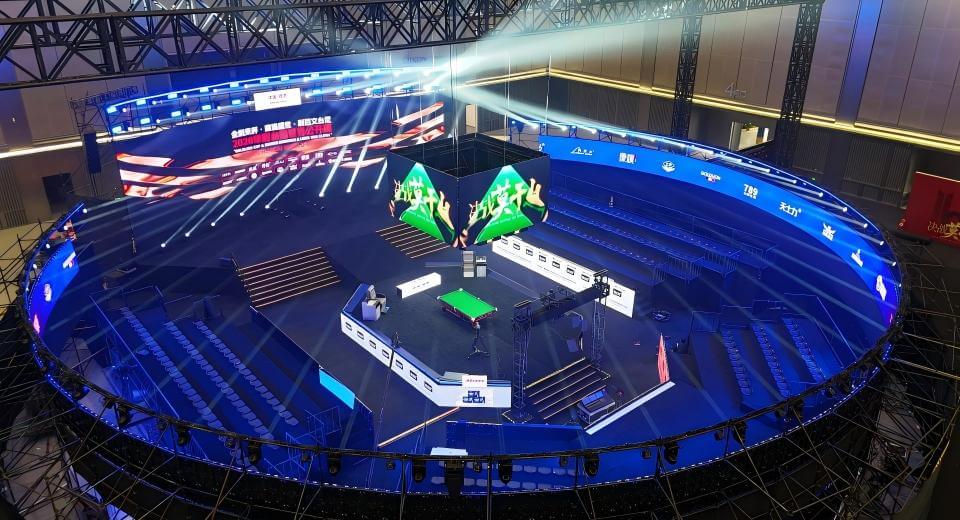

2026 Huacai World Open
At the 2026 Huacai World Open in Deqing, 360 sqm of Dicolor DV2 outdoor LED displays created the main screen and sweeping curved centerpiece, capturing every shot in clear detail. Product ：D V2 Series Screen size：360㎡ Location：Zhejiang, China...
UPPERGROUND Poland
720㎡ of Dicolor MA Series illuminated Upper Ground in Poland, delivering an immersive concert experience with stunning LED visuals, synchronized lighting, spectacular fireworks, and dynamic 3D content.
Related Products
UT Plus Series
The Large-Scale Visual Solution

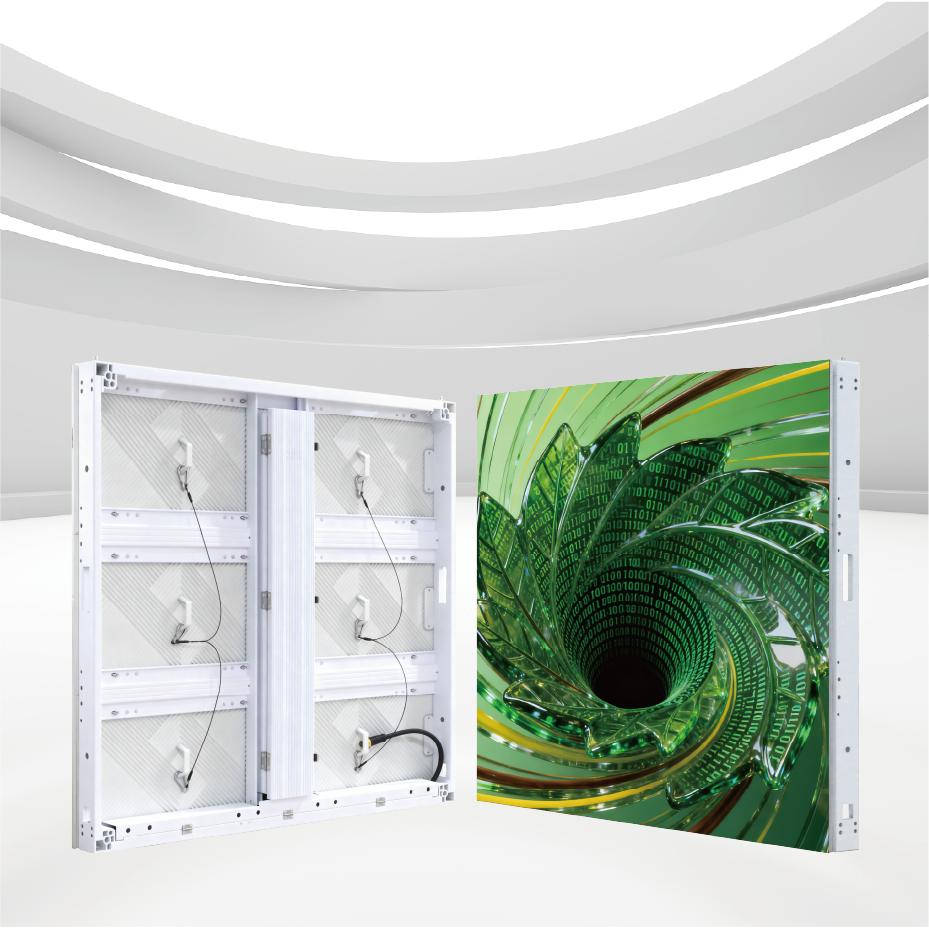

M-W Series
