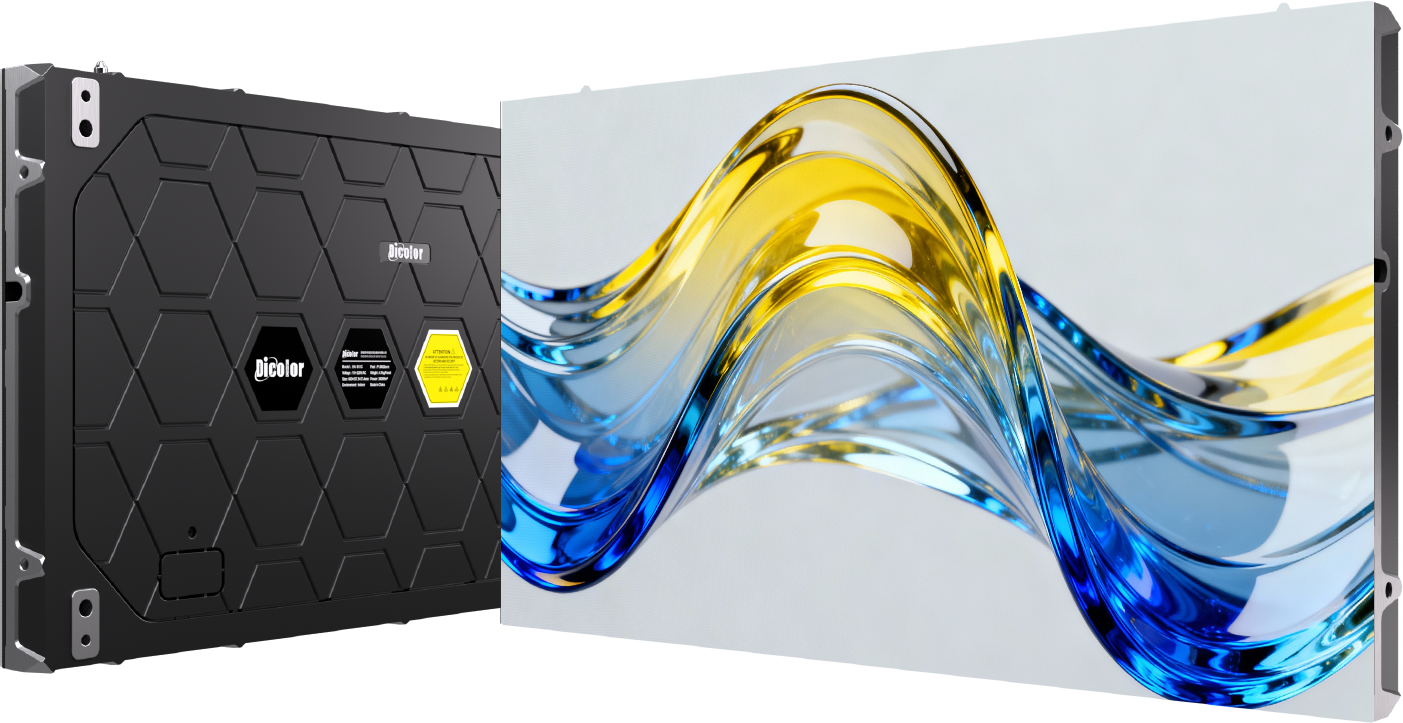

HA-C02 Series
Ultra-High-Definition Indoor COB Fine-Pitch LED Display
The HA-C02 series is an ultra-high-definition indoor COB fine-pitch LED display, designed to deliver exceptional clarity and vibrant visuals. With advanced COB technology, it offers superior durability, seamless viewing, and perfect color accuracy, making it ideal for high-end commercial spaces, control rooms, and premium events.

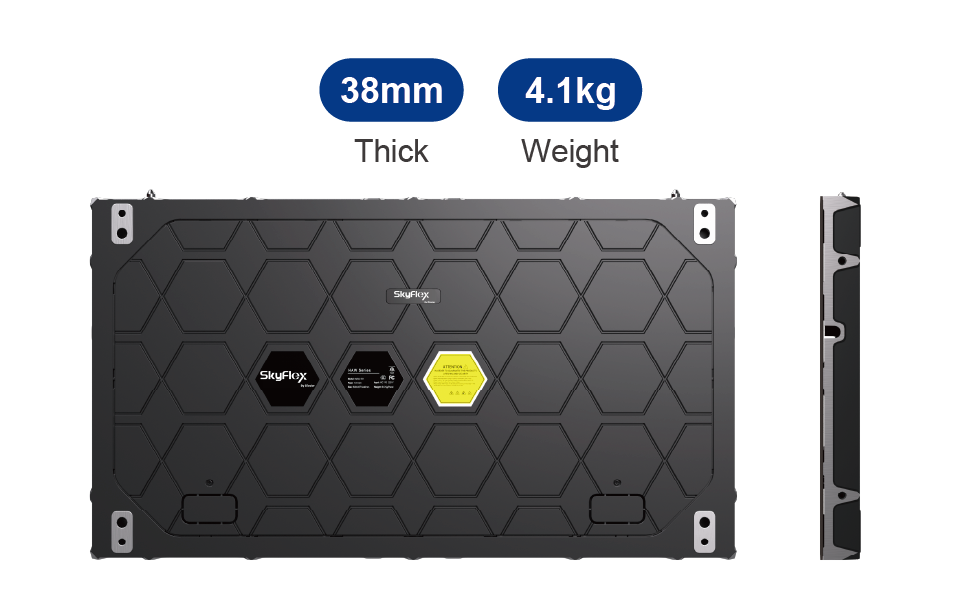

Extremely Light And Slim
Adopt die-casting modular design, 16:9 ratio design, cabinet width only 38 mm, saving the installation space and edge covering cost.
Wireless Connection
Wireless connection technology and port backup function reduce the need for wire connections between cabinets, saving time and cost.
Mini COB
- Fully inverted COB technology
- Mini/Micro LED chips
Common Cathode / Common Anode scheme is available
Excellent Picture Quality
- 600nits
- 5000:1 contrast ratio
- 3840Hz
- 120%NTSC
Seamless Splicing
Patent surface treatment technology, ultra-high ink consistency, ultra-high flatness, non-reflective display panel
Sturdy and durable
IP65 protection level, long-term thermal expansion and contraction test, screen surface temperature ≤ 40 ℃, long service life.
Specification
| Product | HA-C02 Series | |||||
| Pixel Pitch (mm) | 0.625 | 0.78125 | 0.9375 | 1.25 | 1.5625 | 1.875 |
| LED Package | Flip-chip COB | Flip-chip COB | Flip-chip COB | Flip-chip COB | Flip-chip COB | Flip-chip COB |
| Cabinet Size (mm) | 600×337.5×37.7 | |||||
| Module Dimension (mm) | 150×168.75 | |||||
| Cabinet Weight (Kg/pc) | 4.1 | 5 | 4.5 | 4.5 | 4.5 | 4.5 |
| Brightness (Nit) | 600 | |||||
| Refresh Rate(Hz) | ≥3840Hz | |||||
| Gray Scale(Bit) | 13 | |||||
| Maintenance Method | Front‑Service | |||||
| Power Consumption(W） | 390/130 | 425/142 | 330/110 | 295/100 | 280/95 | 280/95 |
| IP Rating | IP65/IP30 | |||||
| Certifications | CE\ETL\FCC\PSE | |||||
| ※ Specifications are subject to change without prior notice. Please refer to the actual product. | ||||||
Coming soon
| FAQ about Dicolor LED Display | |||||
| Q: What are the main applications of LED displays provided by Dicolor? | A: Dicolor's LED displays are used in rental, outdoor advertising, commercial display, visualization, virtual filming, sports, and various other applications requiring high-quality visual technology. | ||||
| Q: What factors should be considered when choosing an LED display for an event? | A: For event displays, installation requirements should be detailed, including ease of operation, enhanced protection, and being lightweight and thin. | ||||
| Q: How does the brightness of an LED display affect its performance in different environments? | A: Higher brightness levels are crucial for outdoor displays to ensure visibility in direct sunlight. Indoor displays can use lower brightness levels, providing soft and non-glaring light. | ||||
| Q: What maintenance is required to keep an LED display in optimal condition? | A: Regular maintenance includes cleaning the display, checking for any damaged pixels, ensuring proper ventilation, and updating software and firmware as needed. | ||||
| Q: How energy-efficient are Dicolor's LED displays compared to other display technologies? | A: We focus on technological innovation and product quality. We were the first to introduce the third-generation energy-saving technology—DCD technology, which features precise RGB voltage control. This technology is energy-efficient and power-saving, truly creating practical and additional value for our customers. | ||||
| Q: What kind of support and services does Dicolor offer for their LED display products? | A: Dicolor provides comprehensive support and services, including installation assistance, technical support, maintenance services, and product training, ensuring optimal performance and longevity of their LED displays. | ||||
| Q: How to choose an LED display suitable for outdoor use? | A: When choosing an LED display for outdoor use, consider factors such as waterproof and dustproof ratings (e.g., IP65), brightness, weather resistance, and viewing angle to ensure stable operation in various weather conditions. | ||||
| Q: What should be noted during the transportation and installation of Dicolor's LED displays? | A: During transportation and installation, ensure that the screens are protected from shocks or vibrations, use specialized transport cases and installation tools, and have professionals handle the installation to ensure the equipment's safety and proper functioning. | ||||
| Q: How to troubleshoot common issues with LED displays? | A: Common issues like abnormal display or dead pixels can be addressed by checking power connections, data cables, and rebooting the system. If problems persist, contact Dicolor's technical support team for assistance. | ||||
| Q: What input signals and control systems do Dicolor's LED displays support? | A: Dicolor's LED displays support multiple input signals such as HDMI, DVI, DP, and SDI, and are compatible with various advanced control systems, offering flexible operation and broad compatibility to meet different application needs. | ||||
|
|||||
The product images and screen contents on this page are for illustrative purposes only. Actual product appearance (including but not limited to design, color, and dimensions) and screen display contents (including but not limited to backgrounds, UI, and illustrations) may slightly vary. Please refer to the actual product.
The UE Series includes the following models: UE-191、UE-251. The barcode encoding rule on the back of the product module is as follows: PXL8 AF-390V3 DC250101XX-X 000X. Here, “PXL8” represents the factory identification and verification code, “AF-390V3” indicates the product model, “DC250101XX-X” is the order number, and “000X” represents the module’s sequential code. (Note: “X” indicates a specific number.)
To provide the most accurate product details, specifications, and features, Dicolor reserves the right to adjust and update textual descriptions, images, and other content on the webpage in real-time, ensuring consistency with the actual product’s performance, specifications, metrics, and components.
Due to real-time changes in product batches and production supply factors, modifications may occur without prior notice. We apologize for any inconvenience caused. For the latest updates, please refer to the official website.
Related Cases
Casino Espinho
The Jiangsu Acrobatic Troupe brings Phantom of Love to Casino Espinho in Portugal, with Dicolor D V2 supporting the performance through flexible stage visuals. From China to Portugal, modern LED technology meets centuries-old acrobatic artistry, helping Chinese culture and stories reach audiences across borders.
JUMP PARK 2026 Guiyang
Over 400㎡ of Dicolor D V2 rental LED displays powered JUMP PARK 2026 in Guiyang, China, creating flat, circular and angled LED configurations for an immersive live stage experience.
Dicolor AF2 XR Virtual Production Studio in Germany
This XR virtual production studio in Germany features Dicolor AF2 indoor rental LED displays, creating an immersive LED volume for film and virtual production. Fine-pitch display, smooth visuals, and stable on-camera performance help deliver detailed virtual...
Related Products
UT Plus Series
The Large-Scale Visual Solution
HA-C03 Series
Ultra-High-Definition Indoor COB Fine-Pitch LED Display

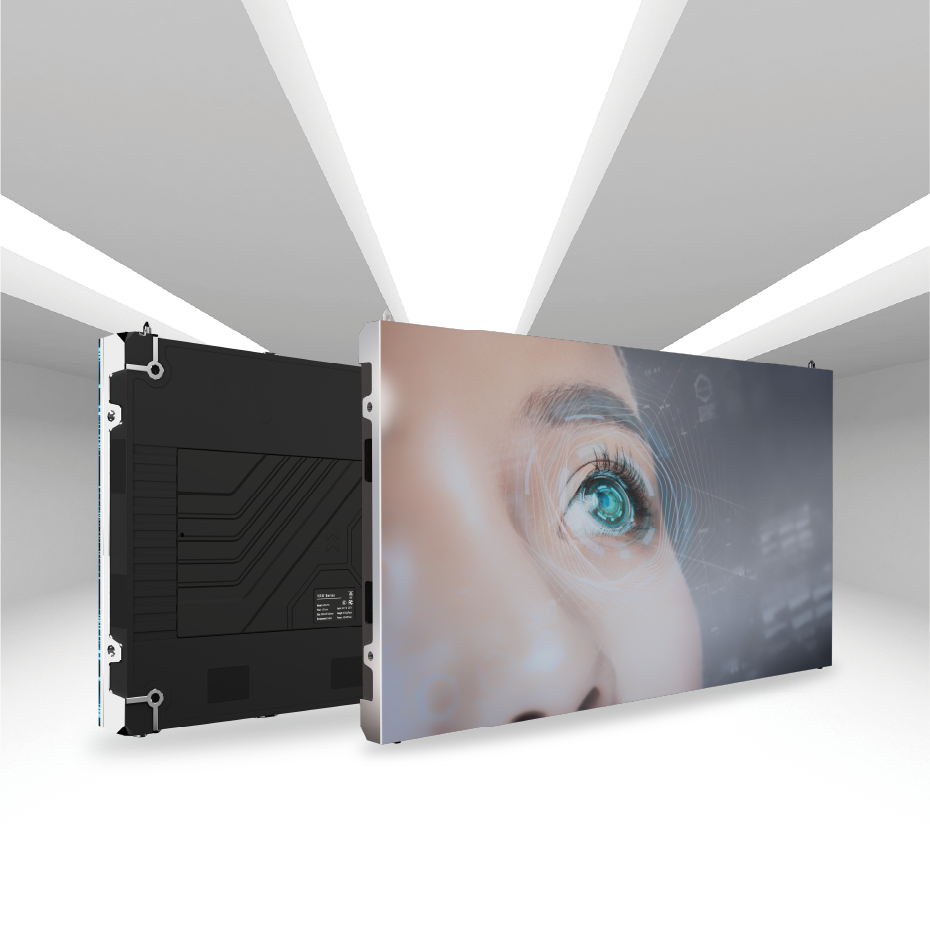

HA-C01 Series
